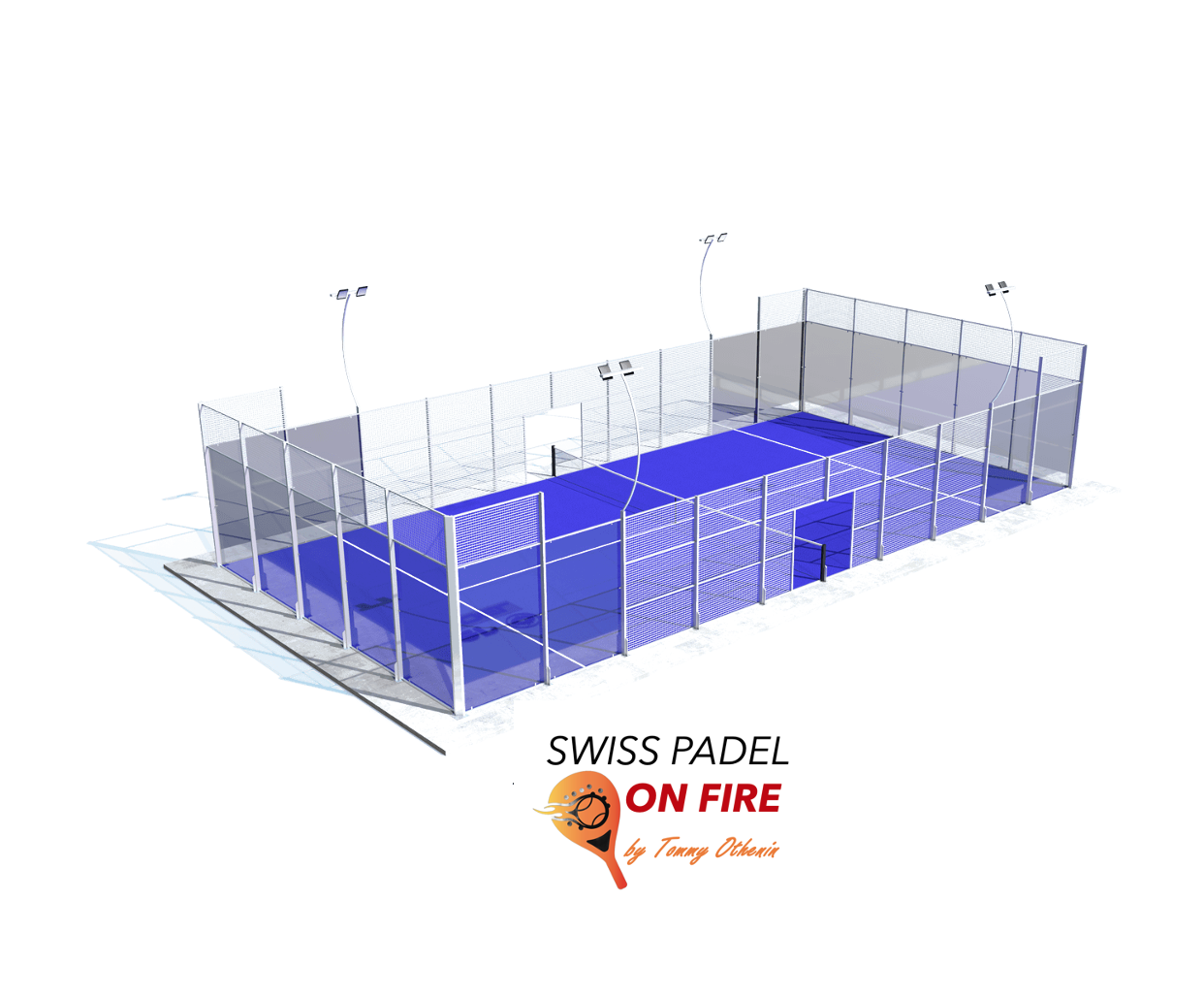

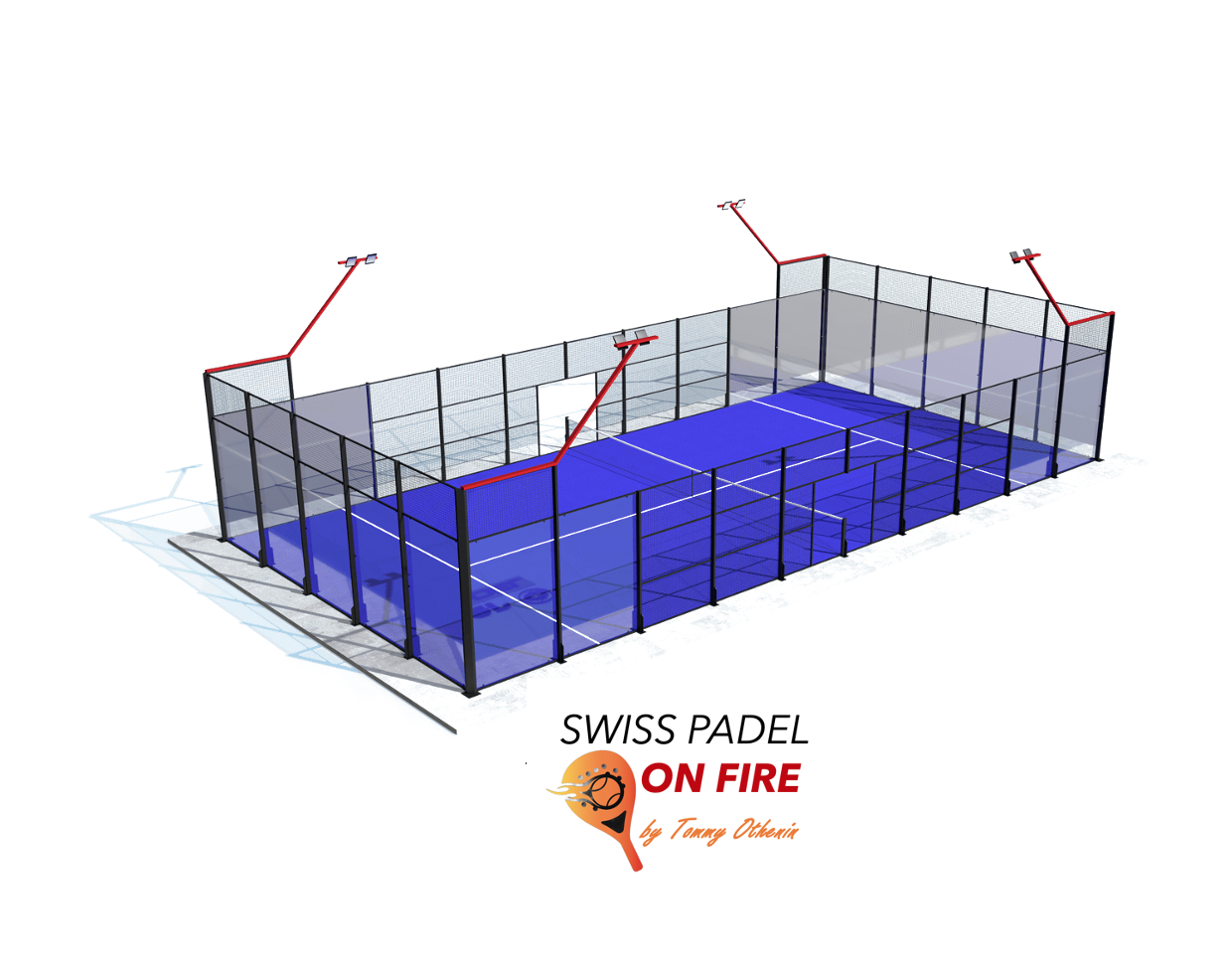

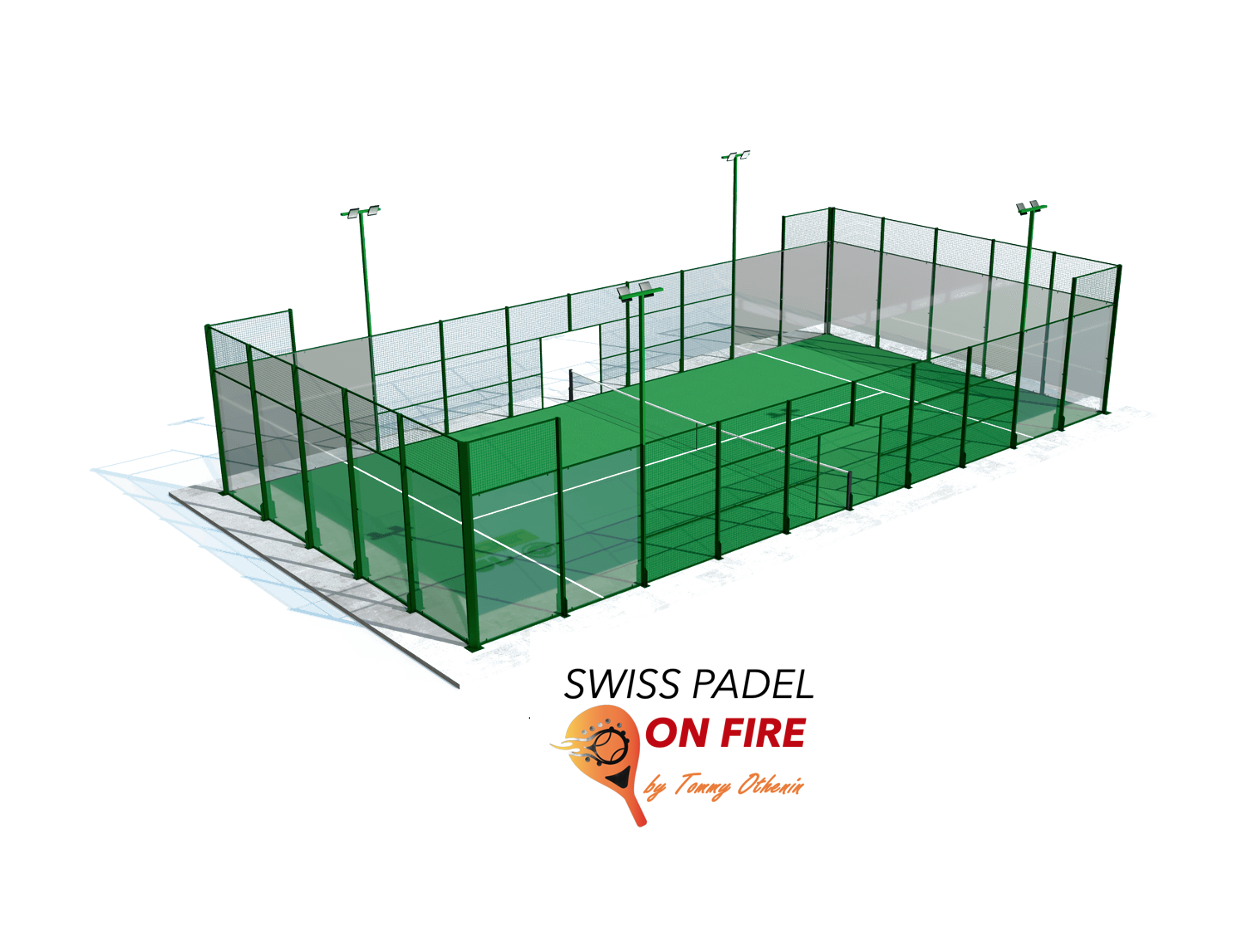

Delivery of a steel structure consisting of: GLAZED ENDS AND SIDES frame made of 100x50x3 mm structural steel tubing, anchored at the corners by a double steel post of 100x50x3 mm tubing with galvanized triangular anchor plates. 14 frames measuring 2000×1000 mm, glazing framed in galvanized dendrimer steel sheet with electro-welded mesh of 50x50x4 mm in the upper section. Folded steel sheet used as a covering frame that covers the corner angles. MEASUREMENT SIDES: 12 columns made of 100x50x2 mm structural steel tubing for anchoring the electro-welded mesh frames, consisting of: 8 frames measuring 3000×2000 mm made of electro-welded mesh of 50x50x4 mm, framed in Sendzimir-galvanized (injury-proof) steel sheet with double profile reinforcement of 40x20 mm in the mesh at 1 m and 2 m to prevent deformations. 4 frames measuring 3000×2000 mm with an opening for double side access to the court, made of electro-welded mesh of 50x50x4 mm and framed in Sendzimir-galvanized steel sheet (to prevent injuries) with double 40x20 mm profile reinforcement in the mesh at 1 m and 2 m to avoid deformations. Double-sided access without doors. Fully galvanized steel structure coated with a thermally cured epoxy-polyester polymer paint baked at 200 °C, to achieve a durable coating resistant to salt residues, sand, and sunlight (corrosion protection). STRUCTURE COLOR according to the customer"s choice with the possibility to combine different colors on the same site. Playing net made of black polypropylene with a mesh size of 43x43 mm, 3.5 mm thick, with anti-UV treatment, tension rope made of galvanized steel, 3.5 mm thick, with plastic coating, wide upper band made of textile tape, anchored to a post with Ø 90 that is equipped with tensioning systems. This post system is free of protruding corners and edges that could cause injuries to players. The entire steel structure forms a single plane, including the glass covering, which helps avoid player injuries and prevents unpredictable ball rebounds. The entire structure of the steel shell complies with current regulations approved by the Spanish Padel Federation (Federación Española de Padel). 4 frames measuring 3000×2000 mm with an opening for double side access to the court, made of electro-welded mesh of 50x50x4 mm and framed in Sendzimir-galvanized steel sheet (to prevent injuries) with double 40x20 mm profile reinforcement in the mesh at 1 m and 2 m to avoid deformations. Double-sided access without doors. Fully galvanized steel structure coated with a thermally cured epoxy-polyester polymer paint baked at 200 °C to achieve a durable coating resistant to salt residues, sand, and sunlight (corrosion protection). STRUCTURE COLOR according to the customer"s choice with the possibility to combine different colors on the same site.
Delivery of 18 certified SECURIT panes (2995×1995 mm) with a thickness of 12 mm, with flat, polished edges and recessed holes, in one piece, protected by a 5 mm thick, vibration-damping neoprene foam at the junction with the frames, screws made of stainless steel that have undergone a reinforcing heat treatment and hardening process. Colorless.

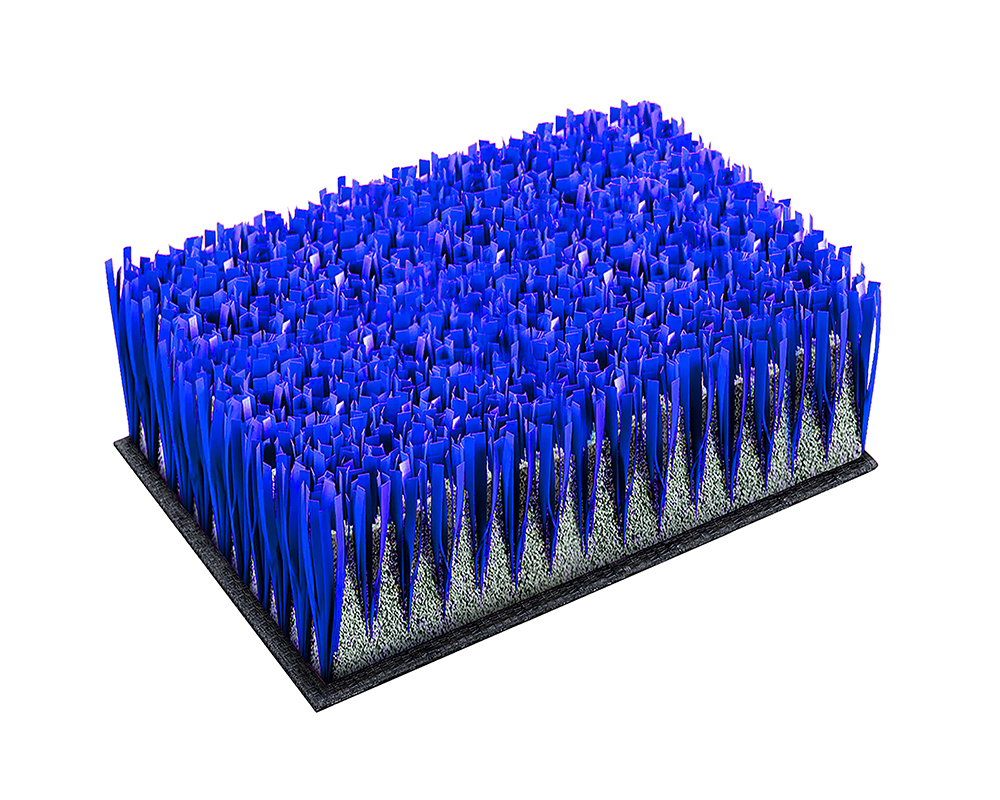

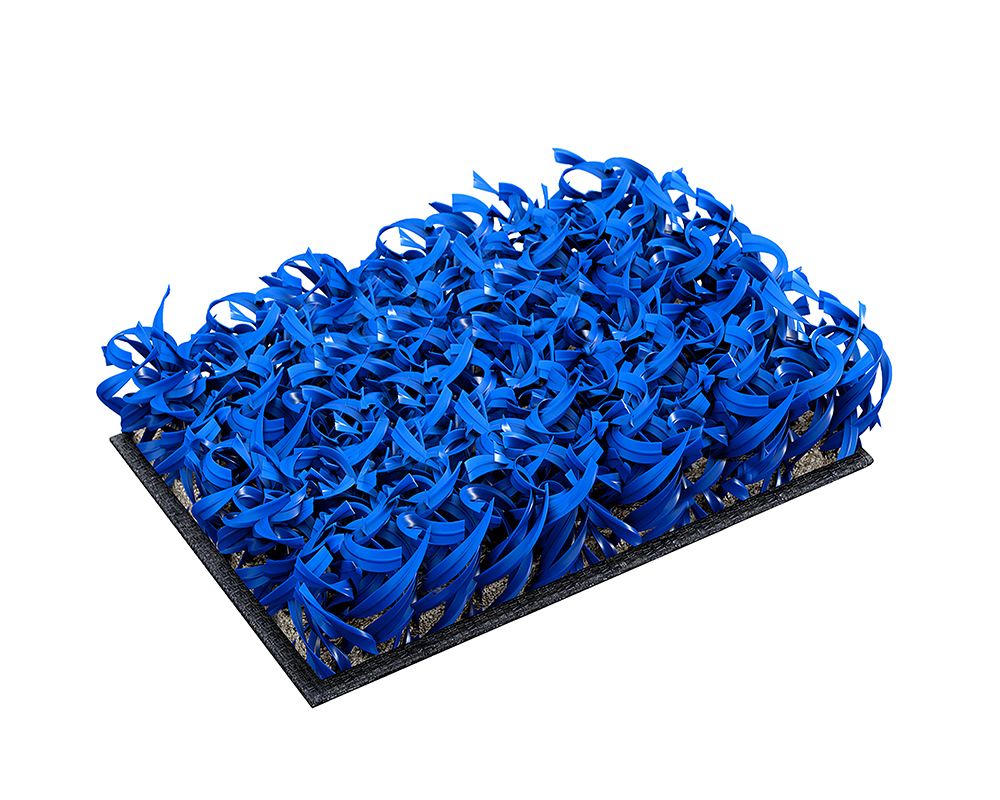

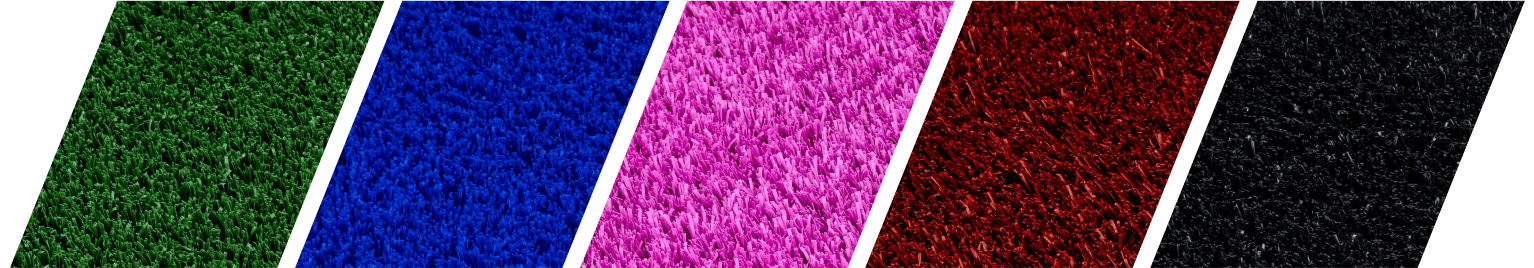

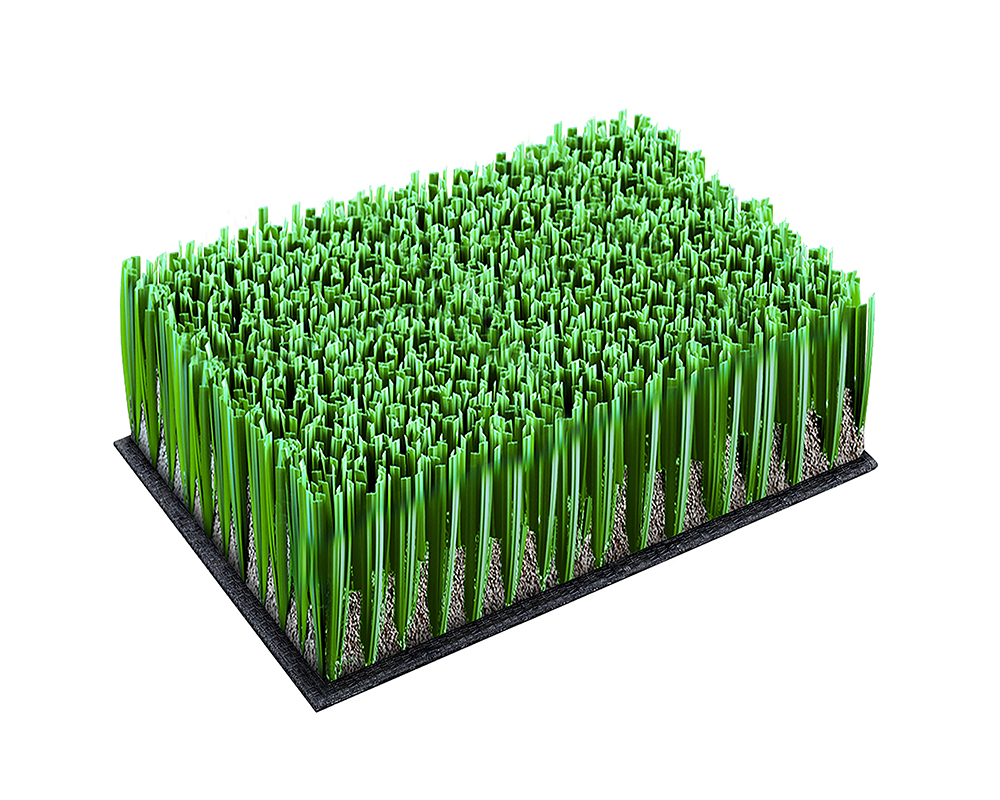

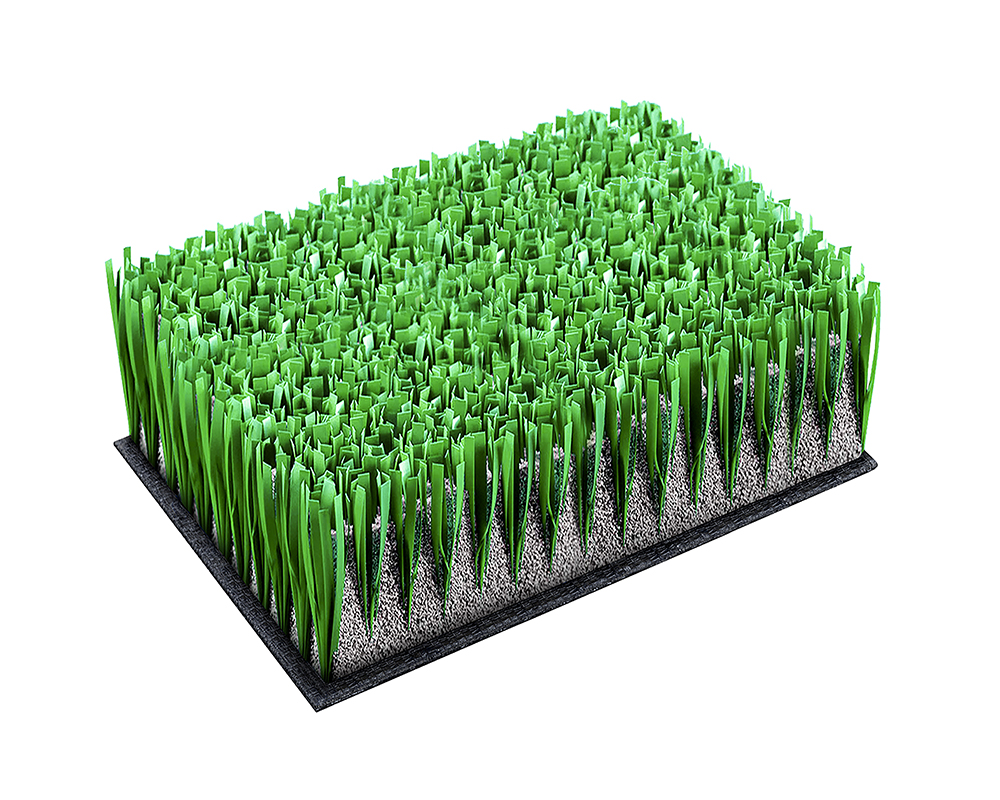

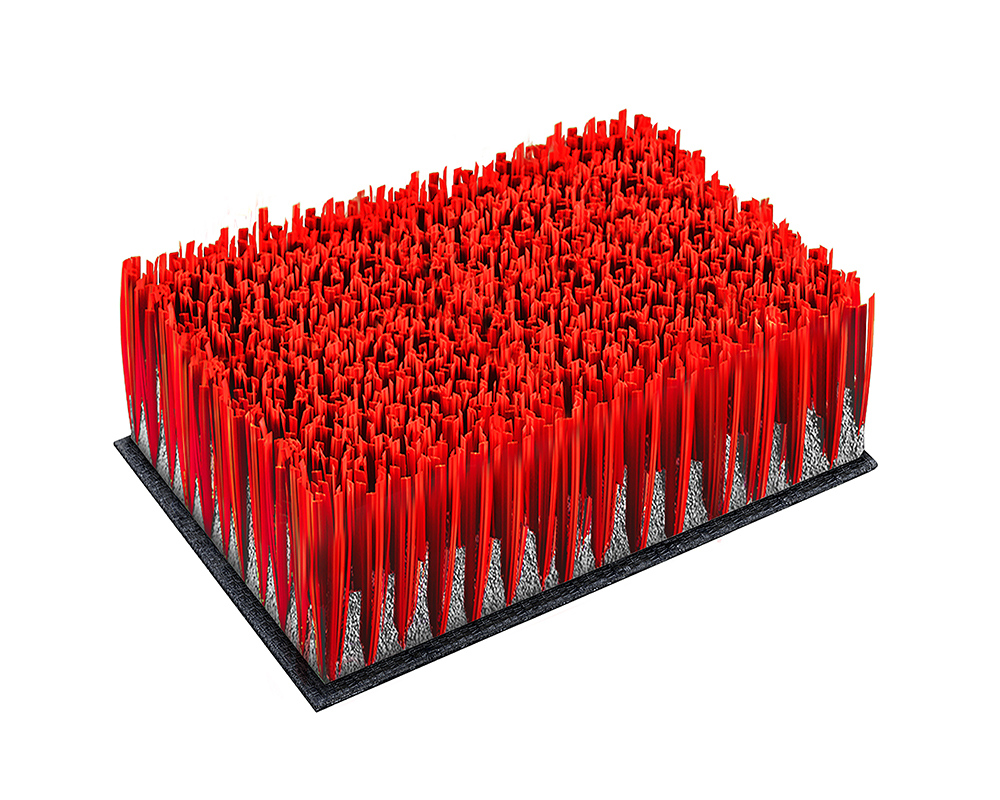

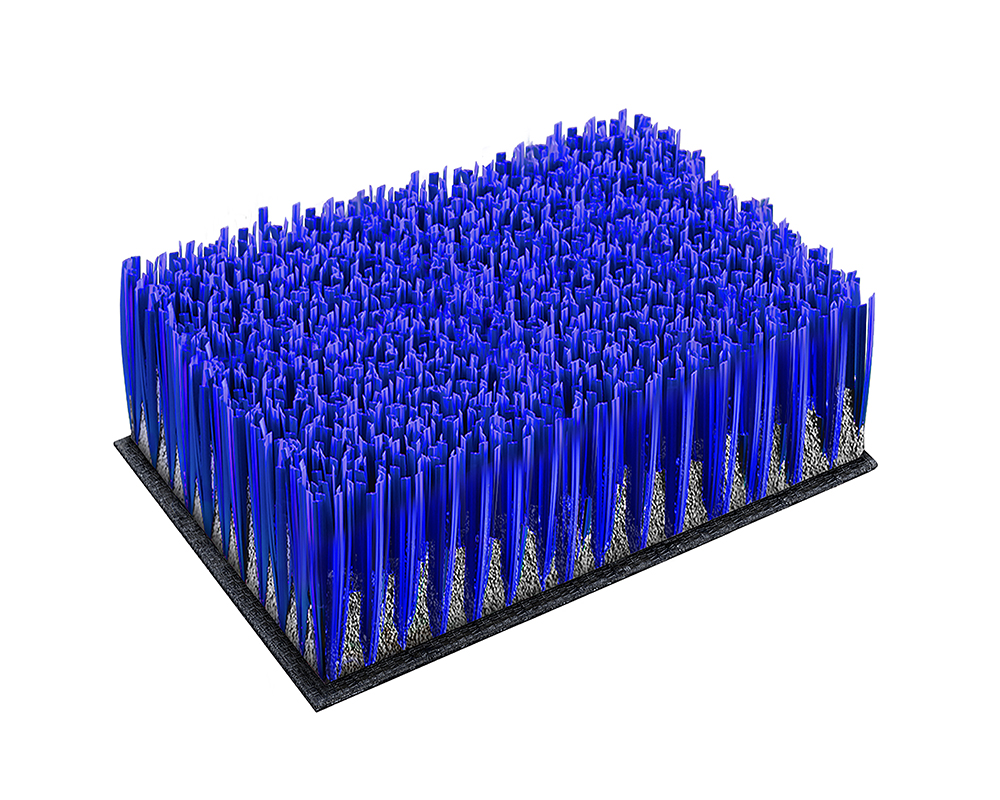

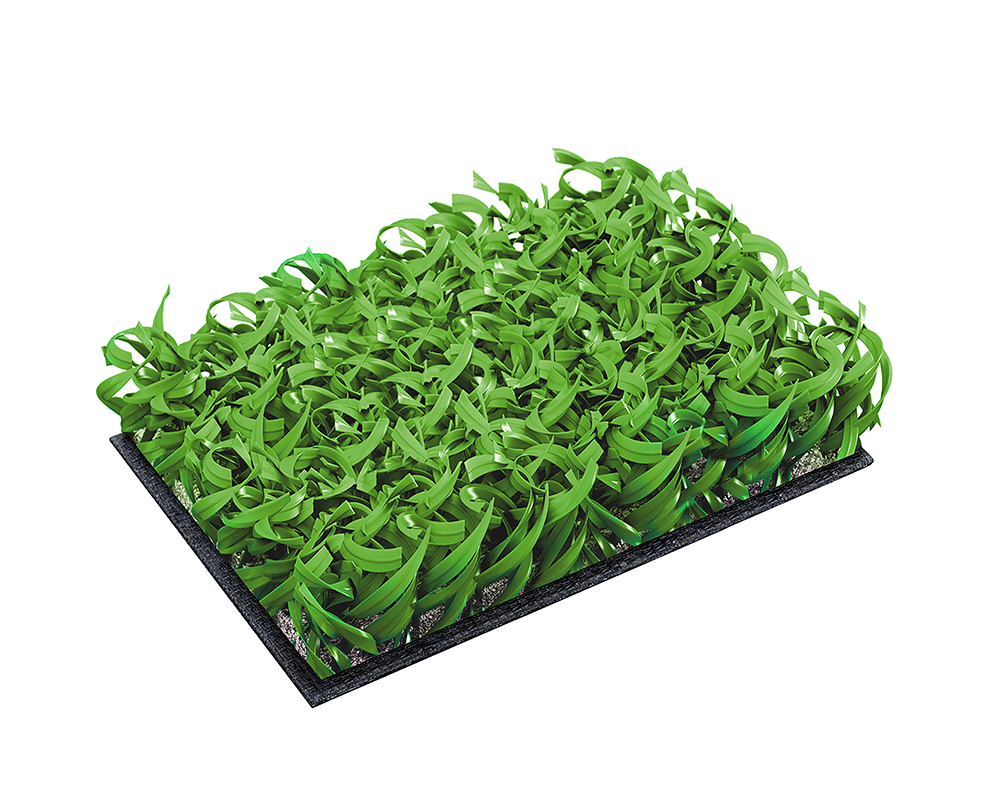

GRASS SET Two (2) cans of solvent-free two-component epoxy resin adhesive and 100 meters of geotextile membrane for sealing the joints. Topdressing with rounded, washed, dried, and dusted quartz sand with a controlled granulation of 0.03-0.08 in a quantity of 15 kg per m2 (3,000 kg).

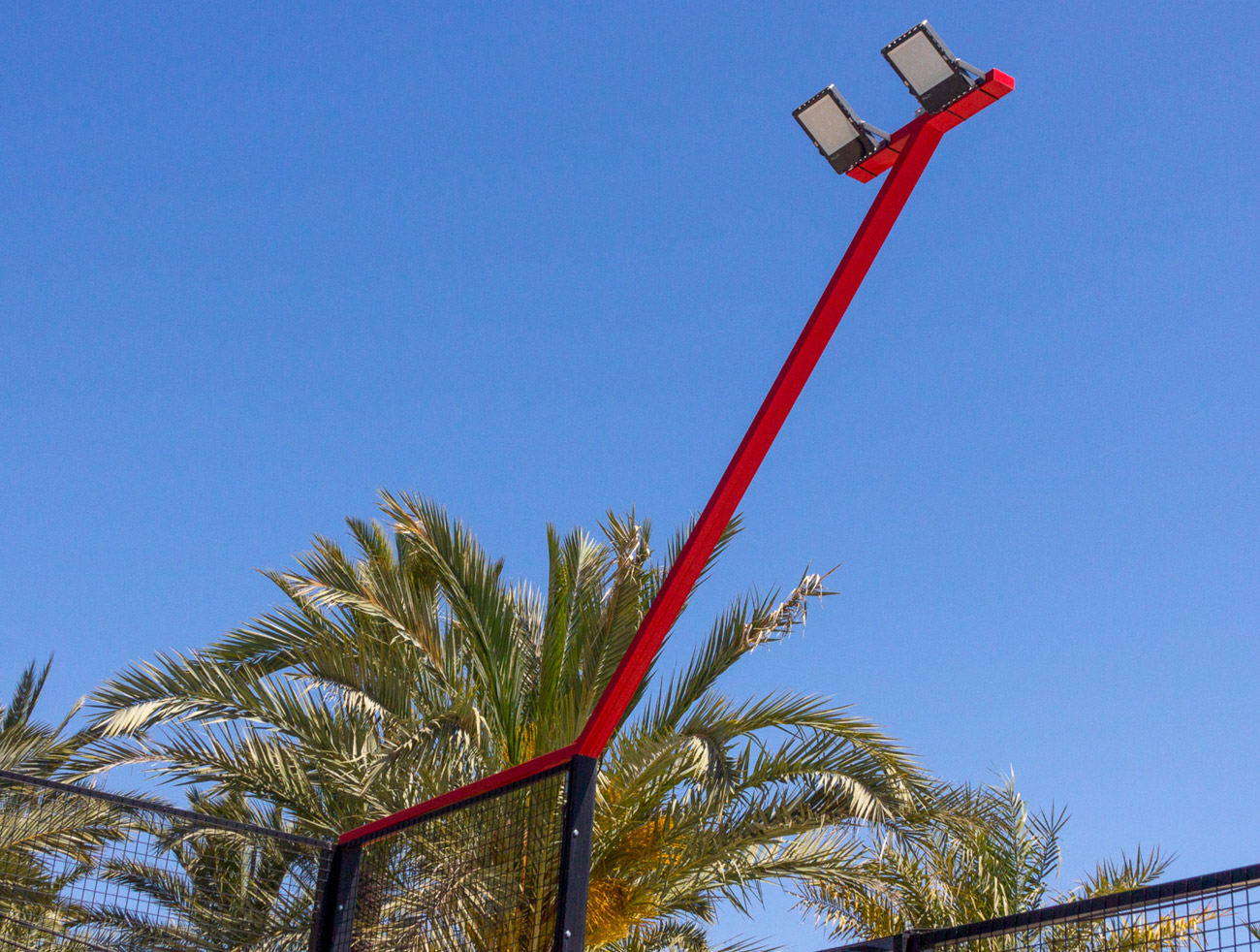

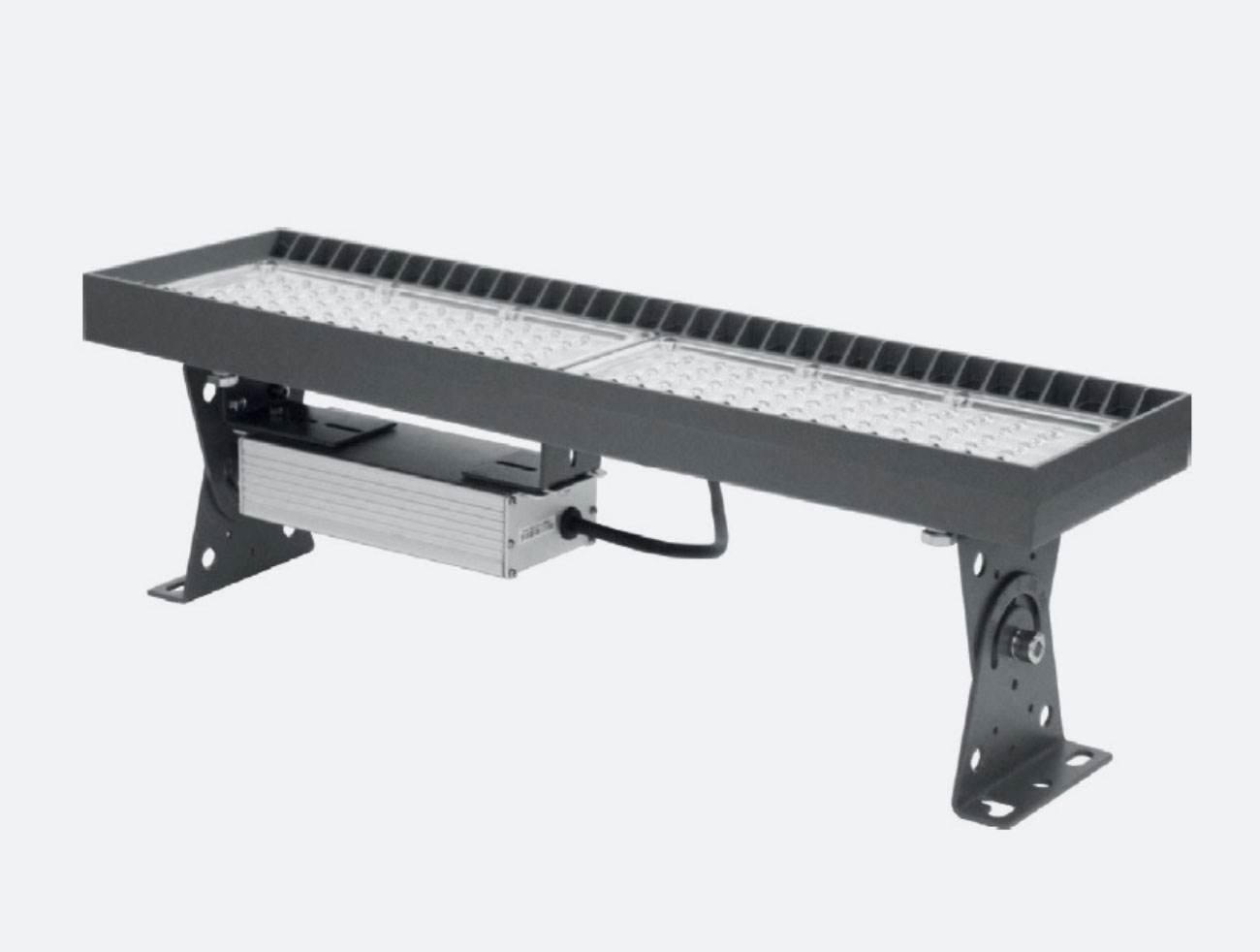

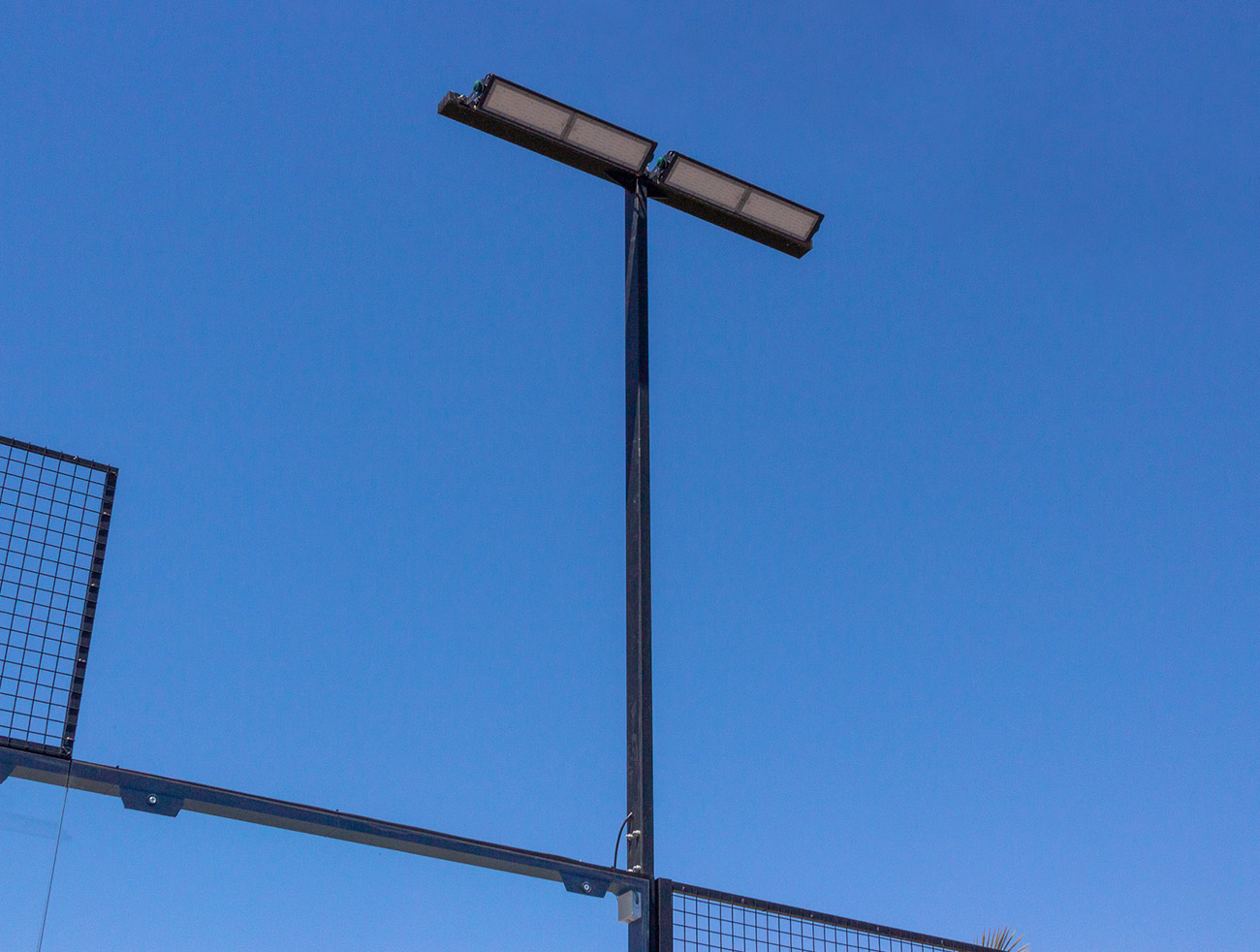

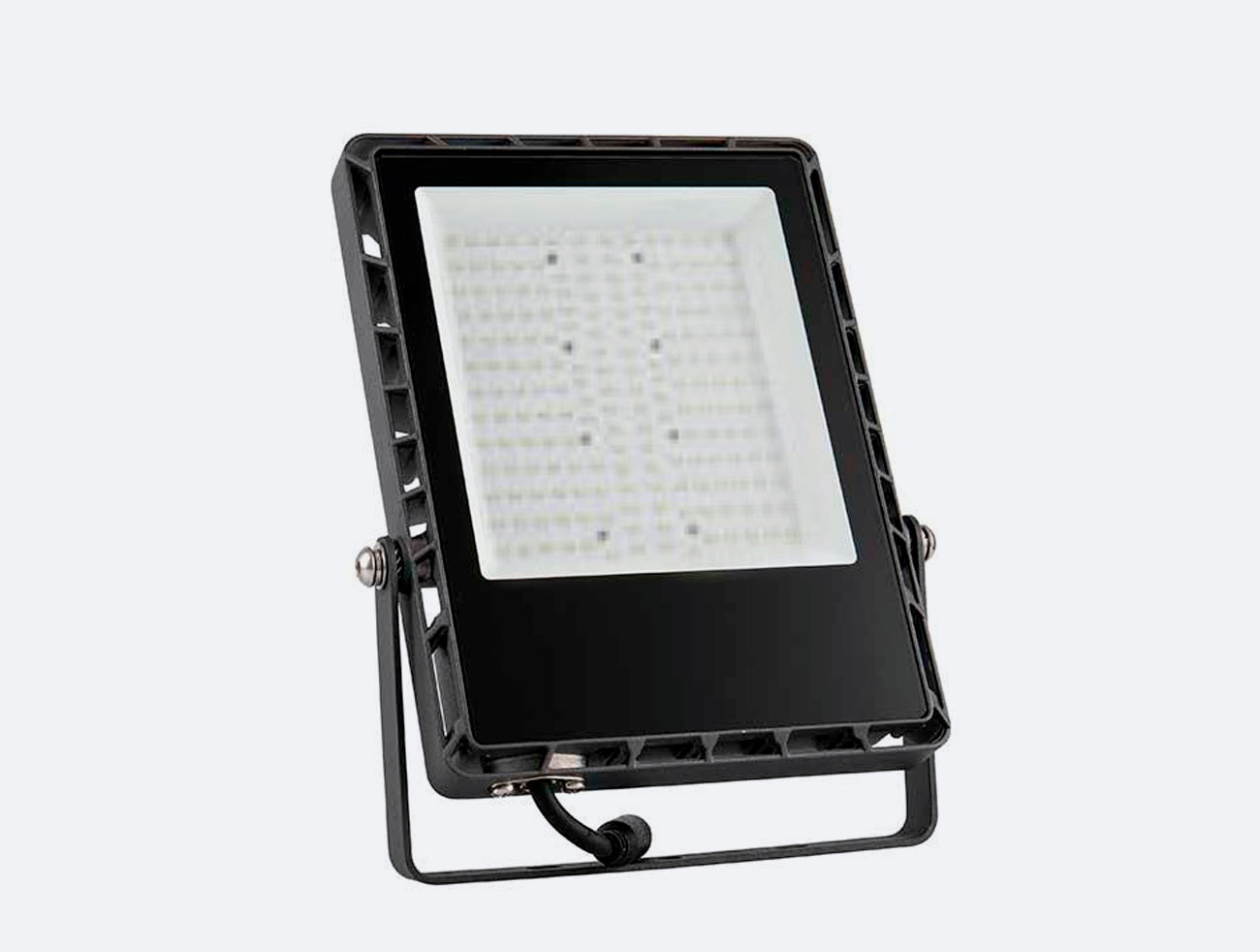

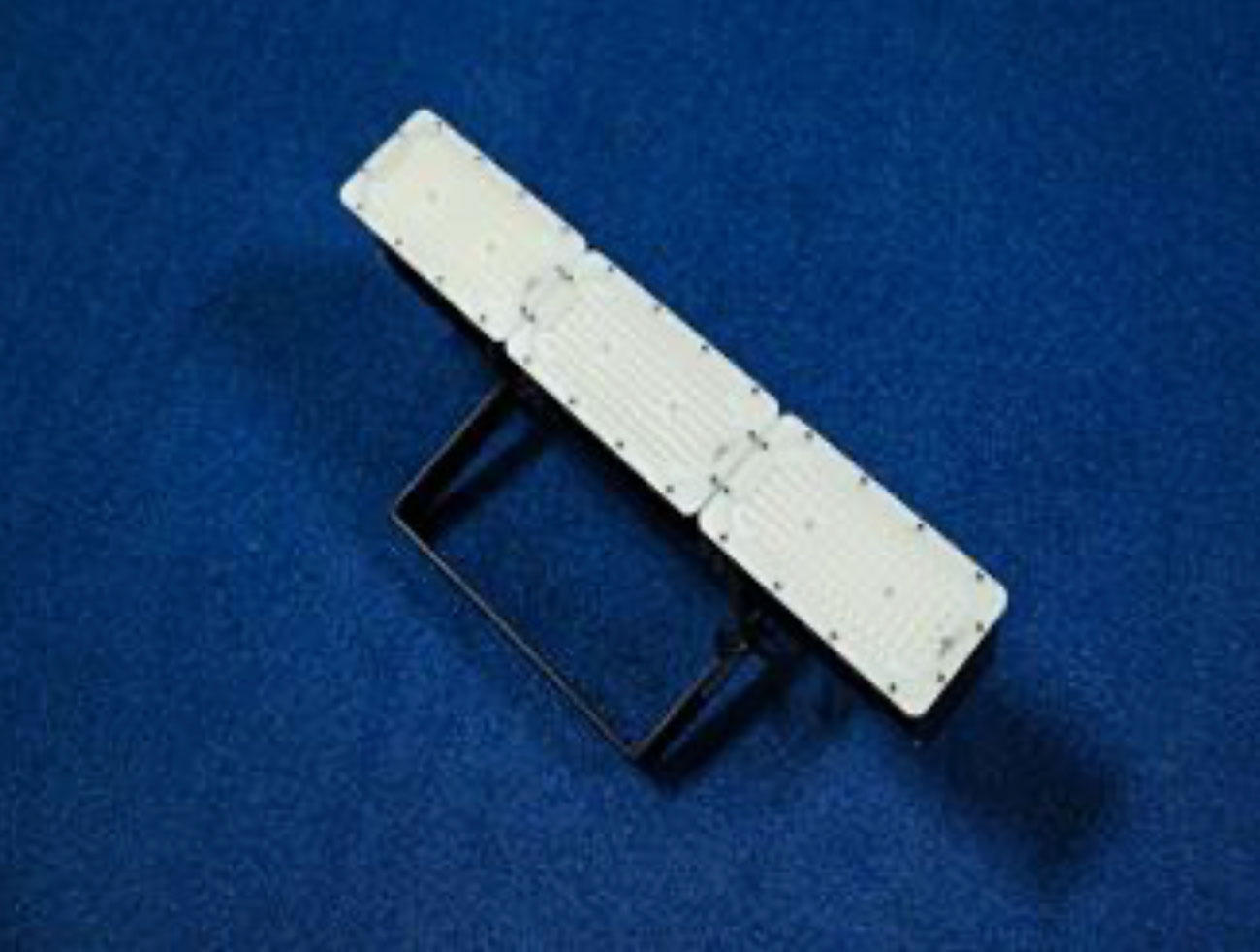

Delivery of 4 additional posts up to a height of 6 meters with cross beams for the installation of lights. A general ground-level power supply is required.
