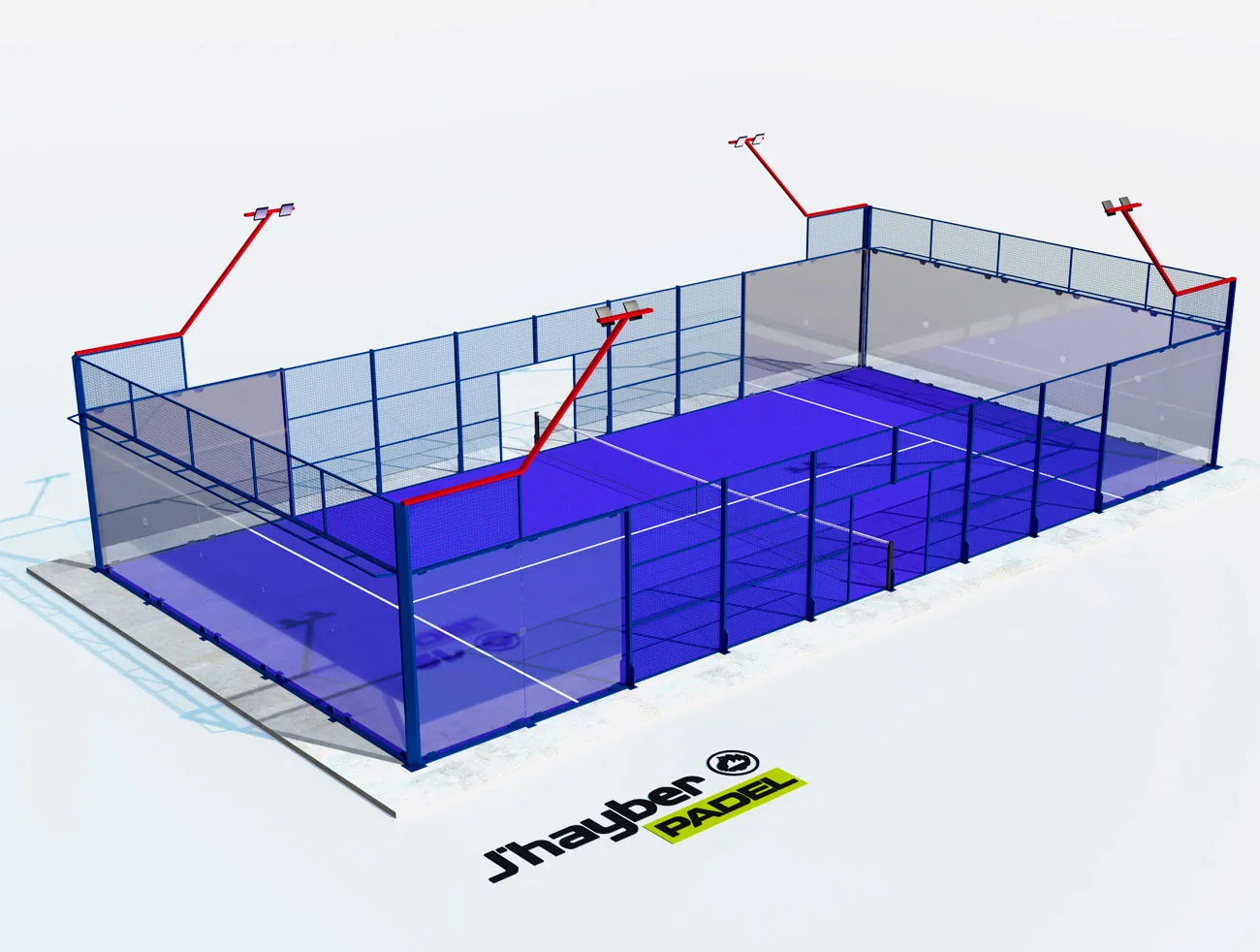

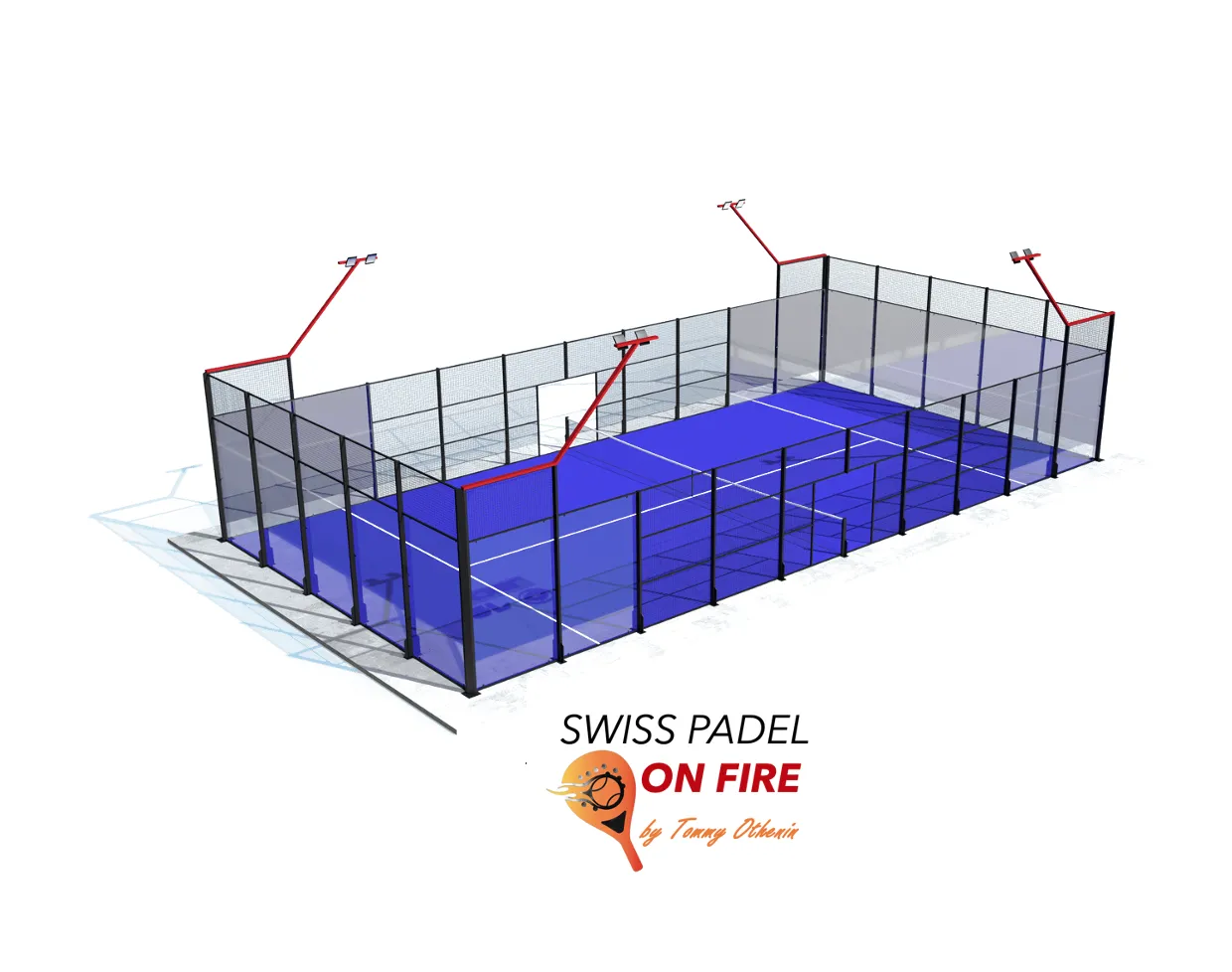

26 structural steel columns made of 100x50x2 mm tubing and 4 double columns of 100x50x2 mm for the corners with a galvanized base plate of 200x200x10 mm with four holes for expansion bolts 10x14x110 mm. Corner diagonals made of bent steel sheet in the same color as the structure. 8 frames measuring 3000×2000 mm with electro-welded mesh of 50x50x4 mm with double profile reinforcement of 40x20 mm in the mesh at 1 m and 2 m to prevent deformations. 4 frames measuring 3000×2000 mm with an opening for double access to the court made of electro-welded mesh of 50x50x4 mm with double profile reinforcement of 40x20 mm in the mesh at 1 m and 2 m to avoid deformations. Double-sided access without doors. 14 frames measuring 2000×1000 mm with electro-welded mesh of 50x50x4 mm on the glass upper part. Galvanized steel structure, coated with thermally cured epoxy-polyester, baked at 200 °C, to achieve a durable coating resistant to salt residues, sand, and sunlight (corrosion protection). COLOR according to the customer's choice. Complete installation set. Playing net made of black polypropylene with a mesh size of 43x43 mm, 3.5 mm thick, with UV protection, tension rope made of galvanized steel, 3.5 mm thick, with plastic coating, wide upper band made of textile tape, attached to a post with a tensioning device. The entire steel structure forms a single plane, including the glass covering, which helps avoid player injuries and prevents unpredictable ball rebounds. The entire structure of the steel shell complies with current regulations approved by the Spanish Padel Federation (Federación Española de Padel).
Delivery of eighteen (18) clear SECURIT glass panes measuring 2995×1995 mm, 10 mm thick, with flat, polished edges and recessed holes for fastening, protected by 5 mm thick neoprene foam seals at the junction with the frames, standardized stainless steel screws that have undergone a reinforcing heat treatment. Colorless.
