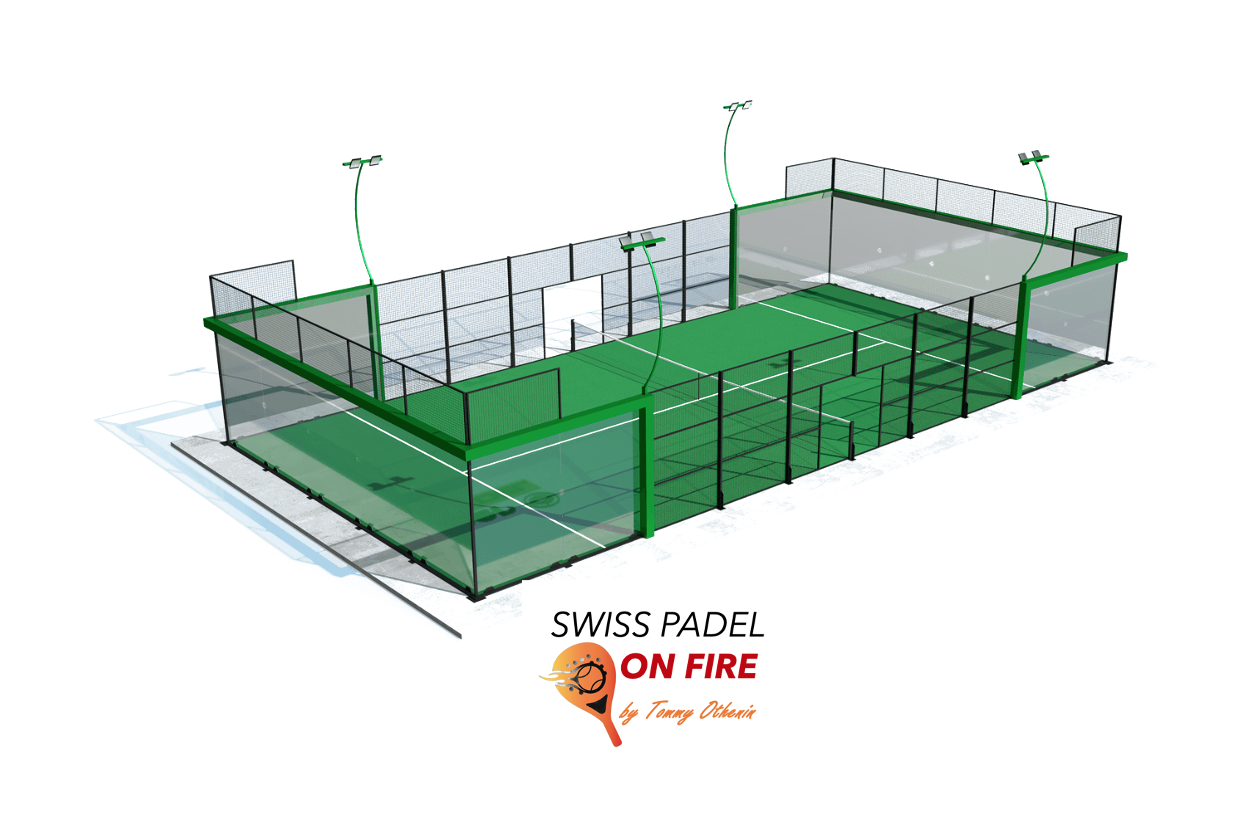

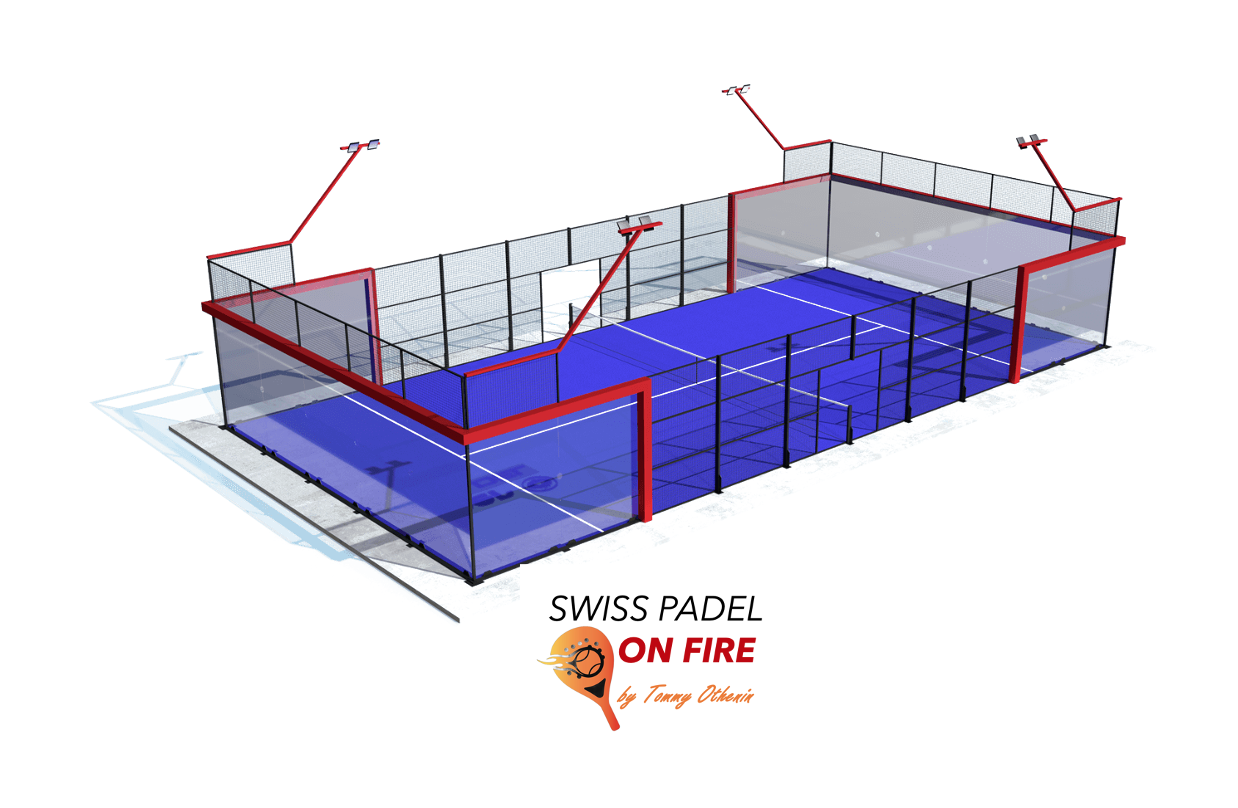

Galvanized anchor plates with rounded edges and reinforcement brackets on 200x200x10 mm thick columns, anchored with four M-12x14x100 expansion dowels. A 150x150x5 mm steel frame made of structural tubing, free of columns in the corners. 8 columns made of structural tubing 100x50x2 mm for anchoring the electro-welded mesh frames. Eight (8) 3000×2000 mm frames made of electro-welded mesh 50x50x4 mm, framed with galvanized steel sheet. Double reinforcement of 40×20 mm profiles spaced 1 m and 2 m in the mesh to prevent deformations. Four (4) 3000×2000 mm frames with openings for double side access to the court made of electro-welded mesh 50x50x4 mm with frames of galvanized steel sheet and double reinforcement of 40×20 mm profiles in the mesh at 1 m and 2 m to prevent deformations. 14 frames measuring 2000×1000 mm with electro-welded 50x50x4 mm mesh on the glazed upper section. Double side access without doors. Steel frame primed and coated with a thermally cured epoxy-polyester polymer paint baked at 200 °C to achieve a durable coating resistant to salt residues, sand, and sunlight (corrosion protection). Professional playing net made of black polypropylene with a mesh size of 43×43 mm, 3.5 mm thick, with anti-UV treatment, net tension rope made of galvanized steel, 3.5 mm thick, with plastic coating, wide upper band made of textile tape, anchored to a post with a tensioning device. The entire steel structure forms a single plane, including the glazing, which helps avoid player injuries and prevents unpredictable ball rebounds. The entire structure of the steel shell complies with current regulations approved by the Spanish Padel Federation (Federación Española de Padel).
Delivery of 18 certified SECURIT panes (2995×1995 mm) with a thickness of 12 mm, with flat, polished edges and recessed holes, in one piece, protected by a 5 mm thick vibration-damping neoprene foam at the junction with the frames, screws made of stainless steel that have undergone a reinforcing heat treatment and hardening process. Colorless.
GRASS SET Two (2) cans of solvent-free two-component epoxy resin adhesive and 100 meters of geotextile membrane for sealing the joints. Topdressing with rounded, washed, dried, and dusted quartz sand with a controlled granulation of 0.03-0.08 in a quantity of 15 kg per m2 (3,000 kg).
Delivery of 4 additional straight poles up to a height of 6 meters for mounting spotlights on a crossbeam and a control plate for connection at ground level. A general ground-level power supply is required.
